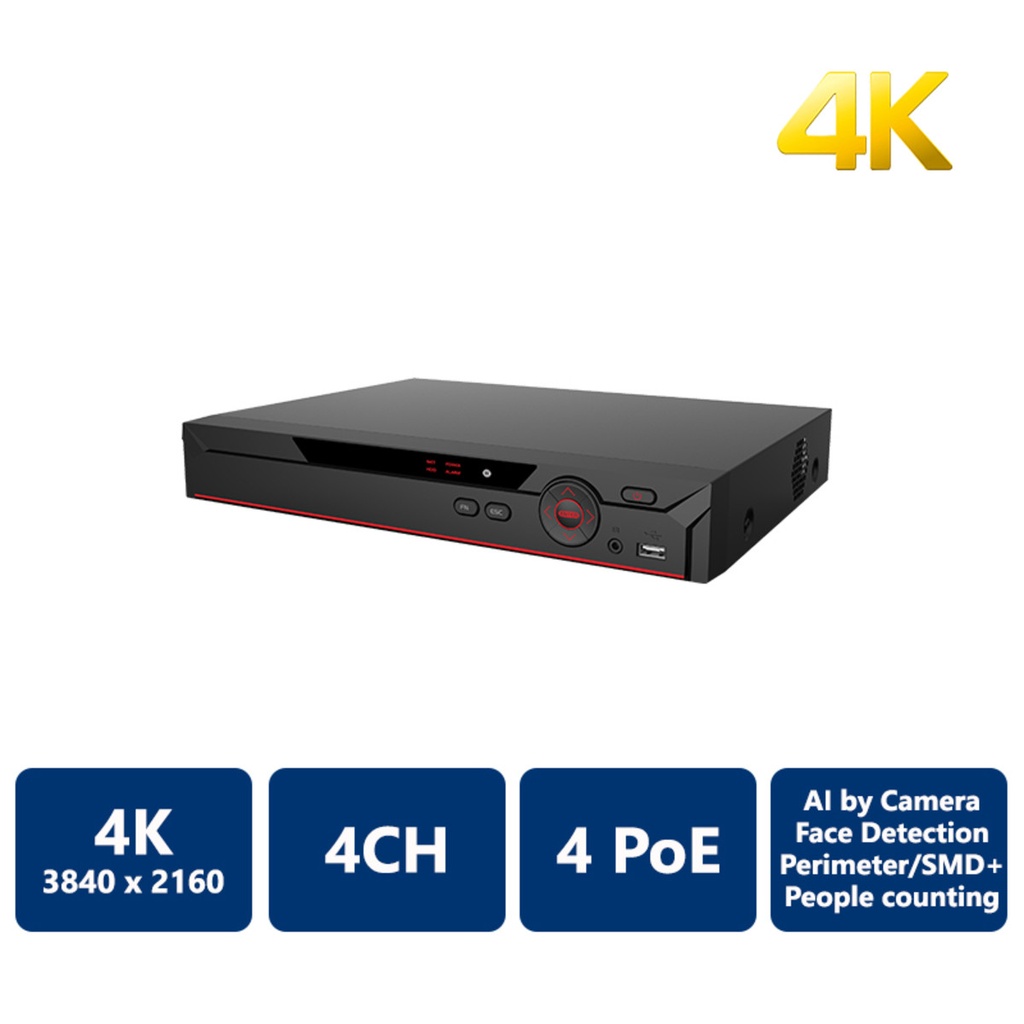

4 CHANNEL COMPACT 1U 4POE 4K&H.265 NVR

NVR-NV41A04-P4-4K-S2L

CAD$ 264.00 264.0 CAD CAD$ 264.00

CAD$ 165.00

    This combination does not exist.

    Description



    - New 4.0 user interface, Security baseline 2.1
    - H.264, H.265, Smart H.264+, and Smart H.265+. H.265 auto switch
    - Supports mainstream cameras of ONVIF and RTSP protocols
    - P2P remote surveillance, video play on mobile device
    - VGA/HDMI simultaneous video output, maximum resolution of HDMI is 4K
    - AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD
    - Supports remote configuration and management of IPC, such as set ting parameters, getting information, and upgrading IPC of the same model in batches

    Information


    Main Processor Industrial-grade embedded processor
    OS Embedded Linux
    Operation Interface Web/operating in local GUI

    Access Channel 4
    Network Bandwidth Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps
    Resolution 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1
    Decoding Capability 4 × 1080p@30 fps
    Video Output 1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI
    Multi-screen Display 1 , 4 views
    Third-party Camera Access ONVIF; RTSP

    Video Smart H.265/H.265/Smart H.264/H.264/MJPEG
    Audio PCM/G711A/G711U/G726/AAC

    Network Protocol HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support IP camera; DVR; NVS; etc.); P2P; auto register
    Mobile Phone Access Android; iOS
    Interoperability ONVIF(profile T/S/G); CGI; SDK
    Browser Chrome; IE9 or later; firefox

    Multi-channel Playback Up to 4 channels for playback
    Record Mode Manual record; alarm recording; SMD recording; smart recording
    Storage Local HDD; network
    Backup USB storage device
    Playback Function 1. Play/pause/stop/slow/quick/backward/by frame
    2. Full screen, backup (video clip/file), partial zoom in, and audio on/off

    General Alarm Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm
    Anomaly Alarm Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception
    Intelligent Alarm Face detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms
    Alarm Linkage Recording, snapshot, audio, buzzer, log, preset, and email

    Audio Input 1 × RCA input
    Audio Output 1 × RCA output
    HDD 1 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature
    USB 2 (1 × front USB2.0; 1 × back USB2.0)
    HDMI 1 (supports up to 4K resolution output)
    VGA 1
    Network 1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port
    POE 4

    Power Supply 48 V/53 VDC, 1.25 A/1.33 A
    Power Consumption < 10 W (HDD not included, idling)
    Total output power of PoE is 36W, the maximum output power of a single port is 25.5W
    HDD 1 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature
    Net Weight 0.86 kg (1.90 lb)
    Gross Weight 1.86 kg (4.10 lb)
    Product Dimensions 260 mm × 232.3 mm × 50.3 mm (10.24" × 9.14" × 1.98")(W × L × H)
    Package Dimensions 117 mm × 373 mm × 307 mm (4.61" × 14.69" × 12.09")(W × L × H)
    Operating Conditions –10 °C to +55 °C (+10 °F to +131 °F)
    Storage Conditions 0 °C to +40 °C (32 °F to 104 °F)
    Operating Humidity 10c/o~93c/o
    Storage Humidity 30%~85%
    Operating Altitude –10 °C to +55 °C (+10 °F to +131 °F)
    Operating Conditions 3000 m (9842.52 ft)
    Installation Desktop mounted
    Certifications CE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4
    FCC: Part 15 Subpart B
