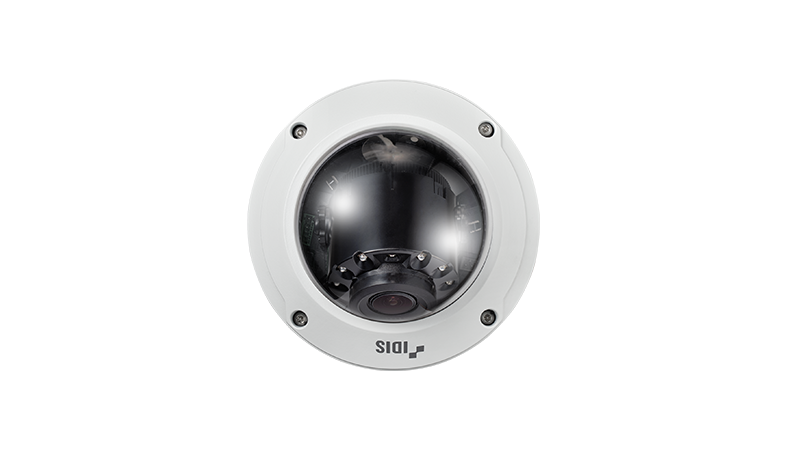

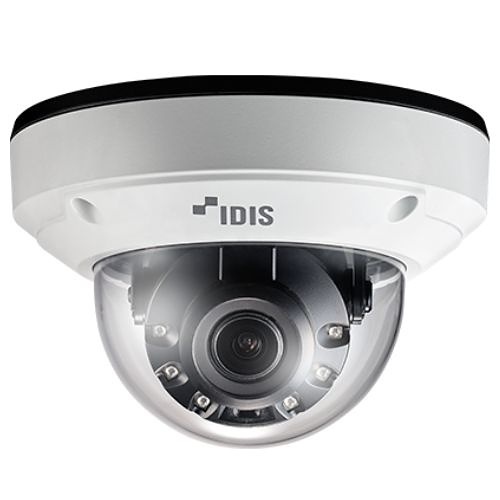

IDIS DC-D4538WRA 5MP Outdoor AI Dome Camera (LightMaster NIR), 2.7-13mm Lens, IP67
DC-D4538WRA https://mysecurity.odoo.com/shop/dc-d4538wra-idis-dc-d4538wra-5mp-outdoor-ai-dome-camera-lightmaster-nir-2-7-13mm-lens-ip67-161698 https://mysecurity.odoo.com/web/image/product.template/161698/image_1920?unique=17ebfd7Product Overview
The IDIS DC-D4538WRA is a 5MP outdoor AI dome camera featuring LightMaster NIR technology for exceptional low-light performance. Built with a 1/2.8" CMOS sensor and a 2.7-13.5mm motorized varifocal lens, it delivers sharp, detailed imagery across a wide range of lighting conditions. Powered by IDIS Deep Learning Analytics (IDLA), the camera provides real-time AI-based detection at the edge. Its rugged IP67 / IK10 housing ensures reliable operation in extreme outdoor environments from -40°C to +55°C. NDAA and TAA compliant.
Key Features
- ✓ 5MP 1/2.8" CMOS Sensor - 2592 x 1944 resolution
- ✓ LightMaster NIR Technology - superior low-light imaging
- ✓ 2.7-13.5mm Motorized Varifocal Lens - remote focus and zoom
- ✓ IDIS Deep Learning Analytics (IDLA) - edge AI detection and classification
- ✓ IR Illumination up to 40m / 131.2ft - 6 IR LEDs for total darkness coverage
- ✓ 120dB True WDR - outstanding performance in high-contrast scenes
- ✓ IP67 and IK10 Rated - weatherproof and vandal-resistant
- ✓ H.265 + Intelligent Codec - up to 50% bandwidth savings
- ✓ PoE IEEE 802.3af - single-cable power and data
- ✓ NDAA and TAA Compliant - approved for government and federal projects
Specifications
| Image Sensor | 1/2.8" Progressive Scan CMOS |
|---|---|
| Resolution | 2592 x 1944 (5MP) |
| Lens | 2.7-13.5mm Motorized Varifocal, F1.4-3.2 |
| Field of View (Wide) | 101.2°H / 72.5°V / 137.4°D |
| Field of View (Tele) | 30.4°H / 22.8°V / 38°D |
| Minimum Illumination | 0.13 lux (color) / 0 lux (IR on) |
| IR Range | 40m / 131.2ft (6 IR LEDs) |
| Dynamic Range | 120dB True WDR |
| Video Compression | H.265 / H.264 / M-JPEG / Intelligent Codec |
| Power | 12VDC or PoE IEEE 802.3af Class 3 (13.2W max) |
| Ingress Protection | IP67 |
| Impact Resistance | IK10 |
| Pan / Tilt / Rotate | -175° to 175° / 0° to 60° / -177° to 177° |
| Operating Temperature | -40°C to +55°C (includes heater) |
| Dimensions | Ø155 x 104.4mm |
| Weight | 1kg |
| Protocols | ONVIF Profile S/T, DirectIP 2.0, IPv4/IPv6, HTTPS, FTP |
| Compliance | NDAA Section 889, TAA Compliant |
