Camden Multi-function relay - Plastic enclosure

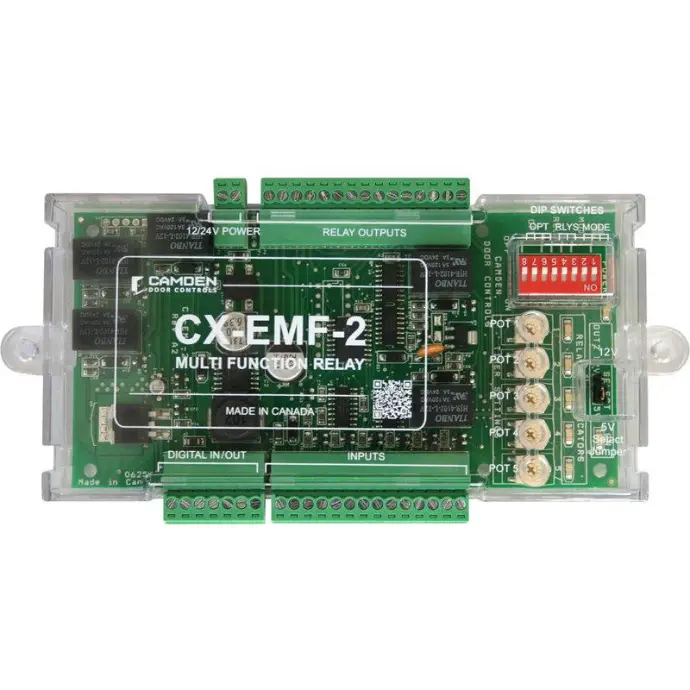

CX-EMF-2EMF-2 is Camden's most sophisticated door control relay and is designed to easily and quickly support a variety of specialized door-control applications. A dedicated 12V/5V LED output suitable for an illuminated "Occupied" sign is also provided. Also available in secure lockable metal cabinet versions (EMF-2M or EMF-2ABM) suitable for wall mounting.
Applications: Advanced automatic door and security control including ATM Vestibule Control (Banks), two-door unsecured washroom in shared-use facility, 2 or 3 door Airlock (with auto-crossing), 2 to 5 door Airlock and 2 door Mantrap. Used where 'Assistance Required' input/output required in restroom applications.
Features
- Microprocessor control
- 3 mode selector switch
- 5 adjustable timers, 1-30 seconds each
- LEDs for visual confirmation
- May be used on normally locked and normally unlocked restroom doors
- 12/24V AC/DC
- Plug-In connectors facilitate wiring
- SPDT contacts rated 3 amps @ 30 VDC
- 7 dry inputs
- Use with fail-safe and fail-secure locks
- Enclosed plastic case or mounted in metal enclosure
- 3 year warranty
Specifications
| Voltage: | 12/24V AC/DC |
| Current Draw: | 150 mA Nominal, 500 mA Maximum |
| Response Time: | .3 Seconds |
| Input: | 7 Dry Momentary Contacts and 1 Digital |
| Output: | 5 x Form 'C' (SPDT), 1 Digital Output |
| Contact Rating: | 3 A @ 30 VDC |
| Electrical Life: | 500,000 Operations @ 1/2 rated Capacity |
| Time Delay: | 5 Pots adjustable from 1-30 Seconds |
| Dimensions: | CX-EMF-2: 6-7/8"L x 2-7/8"W x 7/8"D (173mm x 72mm x 22mm) CX-EMF-2M/2ABM: 12"L x 7-1/2"W x 3-3/4"D (305mm x 190mm x 95mm) |
| Mounting: | CX-EMF-2: Double Sided Foam Tape CX-EMF-2M/2ABM: 4 x #8 Metal Screws |
| Enclosure: | CX-EMF-2: Gray Plastic Case CX-EMF-2M/2ABM: Beige Metal Cabinet |
