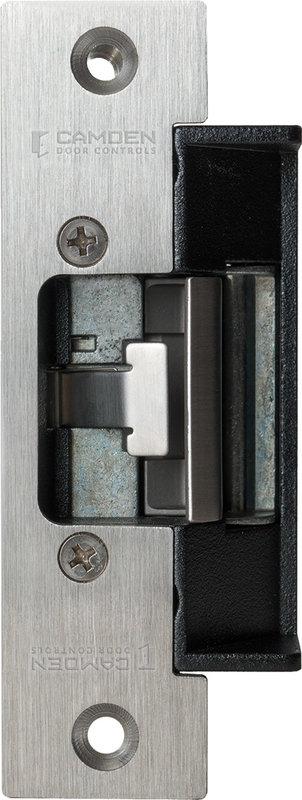

Camden CX-ED1079L Series 'Universal' Gr. 1 Electric Strike w/ Latch Monitoring

CX-ED1079L


The CX-ED1079 (low profile, for 5/8" latch projection) and CX-ED1079D (standard depth, for 3/4" latch projection) 'Universal' grade 1 ANSI strikes offer 'Universal' performance with selectable 12/24V AC/DC and fail safe/fail secure operation, and have horizontal faceplate/body adjustment.

CAD$ 221.91 221.91 CAD CAD$ 221.91

CAD$ 113.80

    This combination does not exist.

    • Centerline latch entry for cylindrical and mortise locksets.
    • CX-ED1079, low profile. 1/2" to 5/8" latch projection (throw)
    • CX-ED1079D, Std. Depth. 5/8" to 3/4" latch projection (throw)
    • Selectable 12/24V AC/DC
    • Selectable fail safe/fail secure operation
    • Horizontal adjustability of strike faceplate/body
    • 3 stainless steel faceplates included: ANSI square, hollow metal and wood door frame
    • Continuous duty operation
    • Non-handed
    • 5 year warranty
    Voltage: 12/24V AC/DC
    Current Draw: 260 mA @ 12 VDC
    150 mA @ 24 VDC
    Static Strength: 1,500 Lbs.
    Dynamic Strength: 70 Ft-Lbs.
    Endurance: 1,000,000 cycles (Factory Tested)
    250,000 cycles (UL Verified)
    Mode: Selectable fail safe
    fail secure
    Operation: AC - Buzz
    DC- Silent
    Duty: Continuous
    Latch Monitor: Yes
    Dimensions: CX-ED1079:
    3-3/8"H x 1-3/4"W x 1-7/32"D
    (86mm x 44mm x 31mm)
    CX-ED1079D:
    3-3/8"H x 1-3/4"W x 1-3/8"D
    (86mm x 44mm x 35mm)


    Reference Guides
    Strikes Cross Reference_R1pdf0.19
    Strikes Installer Guidepdf2.60
    Spec Sheets
    CX-ED1079_Spec Sheet R10pdf0.73
    Manuals
    CX-ED1079L/DL_Manual_R6pdf0.57
    CX-ED1079L/DL_Manual_FR_R6pdf0.68
    Support
    CX-ED1079DL ESP4B Paper Templateoctet-stream0.08
    CX-ED1079DL ESP3B Paper Templateoctet-stream0.09
    CX-ED1079DL ESP1B & ESP2B Paper Templateoctet-stream0.09
    CX-ED1079L ESP1B & ESP2B Paper Templateoctet-stream0.09
    CX-ED1079L ESP3B Paper Templateoctet-stream0.08
    CX-ED1079L ESP4B Paper Templateoctet-stream0.09
