Camden CM-9000/9100 7/8" Vandal Resistant Push/Exit Switch DPDT MOMENTARY

CM-9180

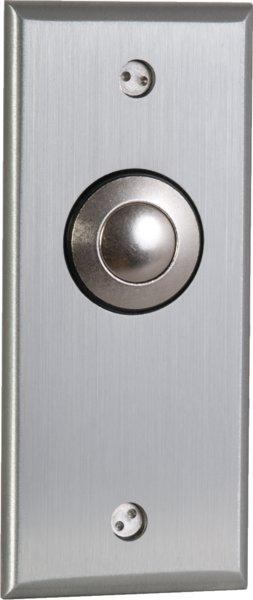

CM-9100 series push/exit buttons are all-metal construction and will withstand extreme attacks of all types.

CAD$ 121.84 121.84 CAD CAD$ 121.84

CAD$ 62.48

    This combination does not exist.

    • Steel button will withstand extreme attacks of all types
    • Button is countersunk in heavy 1/4" thick aluminum plate
    • Indoor or outdoor applications
    • Color coded 18 AWG leads, with spade connectors
    • Lifetime Warranty
    Voltage: 12/24 VDC
    Contact Type: CM-9080/9180: DPDT Momentary
    CM-9090/9190: DPDT Maintained
    Contact Rating: 6 A @ 30 VDC
    Dimensions: CM-9000 Series:
    4-1/2" x 2-3/4" x 1-1/8"
    (114mm x 70mm x 28mm)
    CM-9100 Series:
    4-1/2" x 1-3/4" x 1-1/8"
    (114mm x 44mm x 28mm)
    Std. Finish: Brushed Aluminum
    Spec Sheets
    CM-9000-9100_Spec Sheet_R5pdf0.63
    Reference Guides
    Push Button Switch Cross Referencepdf0.15
    Manuals
    CM-9000 Series_Manual R2pdf0.15
