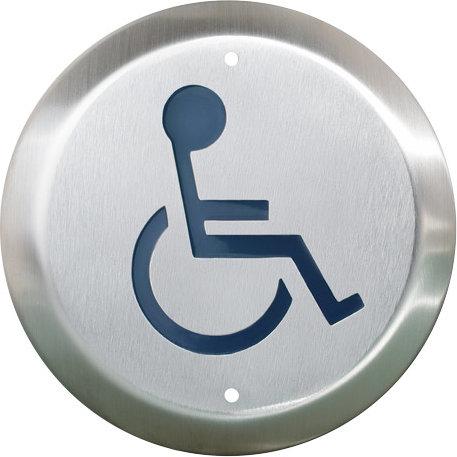

  2. Camden 4½" Round Push Plate Switch Wheelchair Logo

Camden 4½" Round Push Plate Switch Wheelchair Logo

CM-40/2 https://mysecurity.odoo.com/web/image/product.template/76422/image_1920?unique=7016958

CAD$ 87.91 87.91 CAD CAD$ 87.91

CAD$ 45.08

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

 ADA CompliantUL Listed Switch Components

CM-40, CM-41 and CM-60 Series 'All-Active' push plate switches are heavy-duty, ADA-compliant door controls. Faceplates are stainless steel or solid brass, and the assembly is designed for easy installation. The CM-41 4-1/2" square stainless steel backplate is large enough to dress-up (cover) a poorly installed electrical box. It will also fit perfectly on most 4-1/2" surface boxes.

CAMDEN PUSH PLATE SWITCHES NOW INCLUDE 'WR'  WATER RESISTANCE AS STANDARD!

  • 4 stud switch design and rubber dampers for quieter operation
  • Durable stainless steel or brass construction
  • All-Active design requires minimal actuation force
  • Large variety of graphics options
  • Available in a range of architectural finishes
  • 3 year warranty with '2 for 1' replacement
Voltage: 12/24V AC/DC
Switch Type: Momentary
Contact Type: SPDT Form 'C'
Contact Rating: 15 A @ 30 VDC
Mounting: CM-40/41: Single Gang
CM-60: Single or Double Gang or 4 x 4
Std. Finish: US32 / 630
Dimensions: CM-40: 4-1/2" x 1-3/4"
(114mm x 44mm)
CM-45: 4-1/2" x 4-1/2" x 1-3/4"
(114mm x 114mm x 44mm)
CM-60: 6" x 1-1/8"
(152mm x 28.6mm)










Spec Sheets
CM-40-41_Spec Sheet_R8pdf0.55

CM-60_Spec Sheet_R6pdf0.49

Reference Guides
Push Plate Switch Cross Referencepdf0.16

Push Button Switch Cross Referencepdf0.15

OBC Compliant Push Plate Switches_R2pdf0.90

OBC Compliant Push Plate Switches_French_R2pdf0.90
