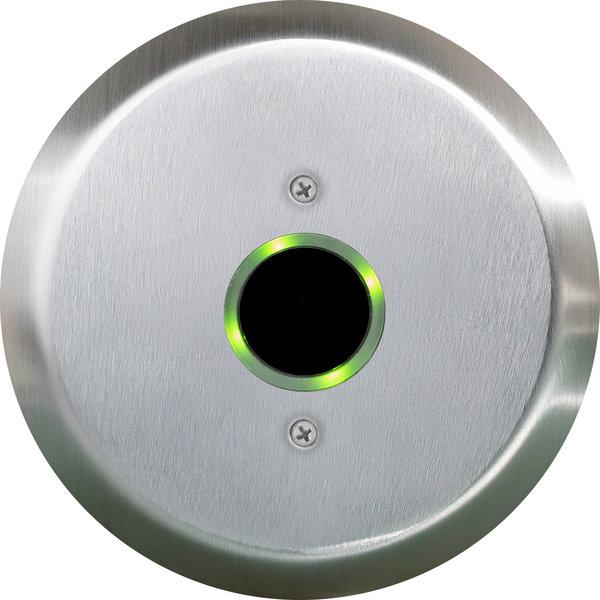

The Camden CM-331/44R-SGLR is a 6-inch round touchless activation switch designed for hygienic and accessible door control. Featuring infrared sensing technology, this device allows users to activate automatic doors without physical contact, making it ideal for healthcare facilities, public buildings, retail spaces, and high-traffic commercial environments.
This model includes a highly visible light ring for clear activation indication, along with hand and wheelchair icons to enhance accessibility awareness. The single relay (1 Form C) output allows easy integration with automatic door operators, electric strikes, magnetic locks, and access control systems.
The durable, professional-grade construction ensures reliable performance in demanding applications while supporting accessibility compliance and infection control initiatives.
Key Features:
• 6-inch round touchless activation switch
• Infrared hands-free operation
• Single relay (1 Form C) output
• Integrated LED light ring for visual confirmation
• Hand and wheelchair accessibility icons
• Compatible with automatic door and access control systems
The Camden CM-331/44R-SGLR provides safe, visible, and accessible door activation for commercial and institutional installations.
- Wired, wireless and hybrid (wirless/wired) models
- Indoor/outdoor use. -4ºF to +153ºF (-20ºC to +85ºC) operating temp. Gasket included in package
- CM-333 Series: Hybrid battery powered models offer 2 year battery life using standard 'AA' alkaline batteries
- CM-336 Series: battery powered wireless models offer industry-leading 4 year battery life using standard 'AA' alkaline batteries
- Line powered models offer 12/24V AC/DC operation
- 1 and 2 relay wired models, SPDT, Form 'C'
- Narrow (jamb), single and and double gang faceplates
- Polycarbonate (black) and stainless steel faceplates
- Advanced active infra-red technology with fast response
- Heavy duty 3 or 5 Amp rated relay
- Adjustable operating range up to 28", refer to model specification
- CM-331/332 Series: Selectable auto range (operation) mode of up to 6"
- Adjustable time delay, refer to model specifcation
- Selectable fail safe/fail secure operation
- CM-331/332 Series: Active output for external alrm, LED or annunciator
- CM-332/333/336 Series: 'Request to exit' and external door contact inputs
- CM-331/332 Series: Optional red/blue/green LED light ring with single gang stainless steel faceplate, indicates switch or door status
| Technology: | Active Infra-red, utilizing microburst sensing technology |
| Voltage: | 12-24V AC/DC |
| Contact Type: | CM-331/333/324/325: (1) SPDT Form 'C' CM-332: (2) SPDT Form 'C' |
| Contact Rating: | CM-331/332/333: 3 Amps @ 30 V CM-324/325: 5 Amps @ 30 V |
| Current Draw: | CM-331/332: 40 mA CM-324/325: 60 mA |
| Wireless: | CM-336: Built-In CM-331/332: Optional Plug-In |
| Wireless Frequency: | CM-330 Series: 915 Mhz. Lazerpoint RF™ Spread Spectrum Wireless |
| Battery: | CM-333/336: (2) 'AA' alkaline -0ºF to +153º F (-18ºC to +85º C) (2) 'AA' Lithium Batteries (optional) -4ºF to +153º F (-20ºC to +85º C) |
| Battery Life: | CM-336: Alkaline: 4 years with 100 activations per dayAlkaline: 2 years with 100 activations per day |
| Adjustable Operating Range: | CM-331/332: 1"- 28" (25mm-711mm) CM-333/336: 1"-12" (25mm-304mm) CM-324: 1"-30" (25.4mm-762mm) CM-325: Min. 2" (51mm) Hand, Max. 18" (45mm) Mirror |
| Time Delay: | CM-331/332/333/336: 3-30 Seconds CM-324/325: 1-5 Seconds |
| Operation: | Selectable Fail Safe/Fail Secure |
| Montion Sensing Modes: | CM-331/332/333/336: Momentary, Momentary with Alarm, Maintained CM-324/325: Momentary |
| Relay Operating Modes: | CM-332: Event, Sequence, Security, Toggle CM-331: Event, Toggle CM-333/336/324/325: Event |
| Input: | CM-331/332/333/336: REX, Door Contact |
| Blue/Green/Red Light Ring: | CM-331/332: Optional |
