  2. Camden CM-300 Series Rectangular LED Illuminated Switch SPDT Momentary

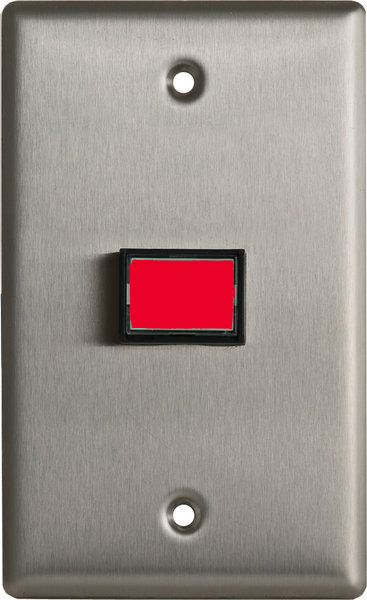

Camden CM-300 Series Rectangular LED Illuminated Switch SPDT Momentary

CM-300R https://mysecurity.odoo.com/web/image/product.template/76425/image_1920?unique=6720684

CM-300 (single gang) and CM-310 (narrow) series LED illuminated exit switches are economical illuminated exit controls. Buttons are 5/8" x 7/8" and are available in red or green.

CAD$ 91.38 91.38 CAD CAD$ 91.38

CAD$ 46.86

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

  • Single gang or narrow stainless steel face plates
  • 1/2" x 3/4" illuminated buttons
  • Available in Red and Green
  • 12/ 24V with LED bulb
  • 3 year warranty with '2 for 1' replacement
Voltage: 12/24 VDC
Contact Type: SPDT Form 'C'
Contact Rating: 3 A @ 30 VDC
Switch Type: Momentary
Dimensions: CM-300: 4-1/2" x 2-3/4" x 1-5/16" (114mm x 70mm x 33mm)
CM-310: 4-1/2" x 1-3/4" x 1-5/16" (114mm x 44mm x 33mm)
Std. Finish: US/C 32D
Spec Sheets
CM-300-310_Spec Sheet_R4pdf0.68
Reference Guides
Push Button Switch_Cross Referencepdf0.15
Manuals
CM-310EE_Manual_R2pdf0.28
CM-300_Manual_R3pdf0.32
