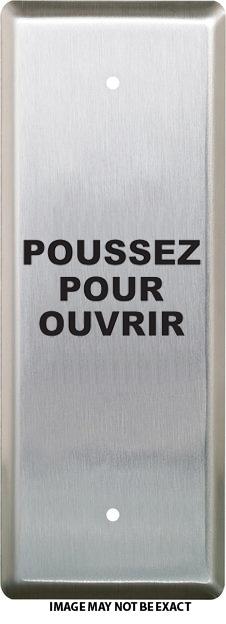

Camden CM-25/3FWT "Poussez Pour Ouvrir" Jamb Sw. Water Tight

Camden Door Controls

CM-25/3FWT

Narrow push plate switch, vertical mounting 4-1/2" x 1-3/4" (114mm x 44mm)

CAD$ 98.53 98.53 CAD CAD$ 98.53

CAD$ 61.58

    This combination does not exist.

    • CM-25 & CM-26CB: 4-1/2” x 1-3/4” (114mm x 44mm) faceplate, mounts in aluminum jamb or in surface boxes
    • CM-35: 4-1/2" x 2" (114mm x 50.8mm) faceplate, conforms to new OBC requirements and mounts on single gang box
    • Durable stainless steel construction
    • All-Active design requires minimal actuation force
    • Meets ADA requirements
    • Ultra quiet operation
    • Permanent debossed or laser engraved graphics
    • 3 year warranty with '2 for 1' replacement
    Voltage: 12/24V AC/DC
    Contact Type: N/O SPST
    Switch Type: Momentary
    Contact Rating: 3 A @ 30 VDC
    Temp Range: -40°F to 140°F (-40°C to +60°C)
    Dimensions: CM-25 & CM-26CB: 4-3/16" x 1-3/4" x 1-3/16"
    (113mm x 44mm x 30mm)
    CM-35: 4-1/2"x 2-3/4" x 1-3/16"
    (114mm x 70mm x 30mm)
    Std. Finish: US32 / C32D
    Spec Sheets
    CM-25 & CM-26CB_Spec Sheet_R3pdf0.56
    CM-35_Spec Sheet_R5pdf0.57
    Reference Guides
    Camden Push Plate Switch_Cross Referencepdf0.16
    Guide To OBC Compliant Push Plate Switches_R2pdf0.90
    Guide To OBC Compliant Push Plate Switches_French_R2pdf0.90
