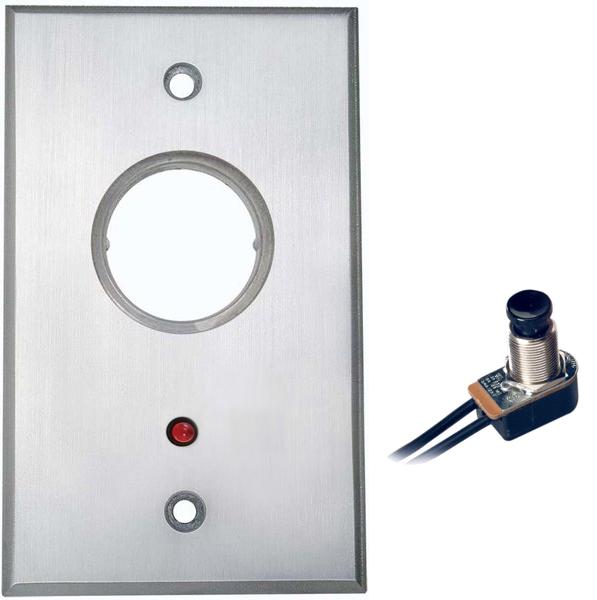

Camden Cast Aluminum, Flush Mount Key Switch, SPDT N/O & N/C Momentary Red 12V LED mounted on faceplate

Camden Door Controls

CM-1120-7012

Camden vandal resistant key switches feature a 1/4" thick faceplate, with one-piece faceplate and switch bracket design.

CAD$ 109.95 109.95 CAD CAD$ 109.95

CAD$ 68.72

    This combination does not exist.

    • Indoor or outdoor flush applications
    • Accepts standard mortise cylinders (1" - 1-1/4")
    • Mullion style - only 1-3/4" wide
    • Heavy duty 1/4" thick aluminum plate
    • 1 piece die cast construction
    • Locators prevent cylinder from spinning
    • Cylinder sits flush to faceplate
    • Tamper proof screws and driver provided
    • No set screw required
    • 1 or 2 switches may be installed
    • Heat shrink protective sleeve over contacts
    Voltage: 12/24V AC/DC
    Contact Rating: 6 A @ 30 VDC
    Switch Life: 100,000 cycles
    Temp Range: 32°F to 85°F (0°C to +85°C)
    Std. Finish: Brushed Aluminum
    Dimensions: Single Gang: 4-1/2" x 2-3/4" x 1-1/2"
    (114mm x 70mm x 42mm)

    Narrow: 4-1/2" x 1-3/4" x 1-1/2"
    (114mm x 44m x 42mm)

    Spec Sheets
    CM-1100-2000_Spec Sheets_R5pdf0.62
    Reference Guides
    Key Switch_Cross Referencepdf0.15
    Manuals
    CM-1100_2200_Manual_R1pdf0.62
