Camden 2,000 Users, Slim Line, Surface Mount, (1) Form 'C' Relay, 12 VDC

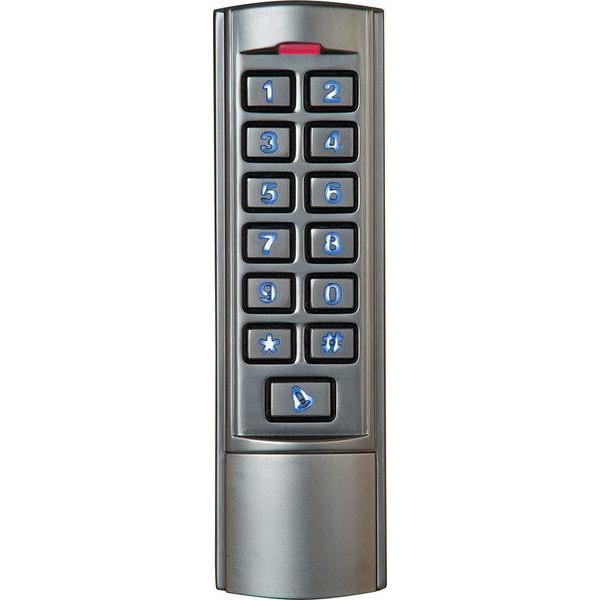

CM-110SKCamden CM-110SK is a slim line 12 VDC standalone keypad supporting up to 2,000 users with a 1 Form C relay for commercial access control applications.
The Camden CM-110SK is a slim line surface mount keypad designed for standalone access control applications. Supporting up to 2,000 users, this keypad provides scalable credential management for commercial, institutional, and light industrial environments.
Operating on 12 VDC, the CM-110SK features a 1 Form C relay output, allowing integration with electric strikes, magnetic locks, gate operators, and other access control hardware. Its compact, low-profile design makes it ideal for installations where space is limited but reliable access control is required.
Engineered for durability and consistent performance, the CM-110SK is suitable for offices, retail storefronts, healthcare facilities, schools, and multi-tenant buildings. The surface mount configuration allows for clean, straightforward installation.
Key Features:
• Supports up to 2,000 users
• 12 VDC operation
• 1 Form C relay output
• Slim line surface mount design
• Compatible with electric strikes and maglocks
• Ideal for commercial access control applications
The Camden CM-110SK delivers dependable standalone access control in a compact, professional-grade keypad solution.
| Voltage: | CM-550SK: 12 VDC +/- 10% CM-110SK:12 VDC |
| Protection: | CM-110SK: IP68 CM-550SK: IP65 |
| Current Draw: | CM-110SK: 60 mA CM-550SK: 50 mA |
| Contact Type: | CM-110SK: (1) Form ‘C’ CM-550SK: (2) Form 'C' |
| Contact Rating: | CM-110SK: 3 A @ 30 VDC CM-550SK: 2 A @ 30 VDC |
| Wiegand Interface: | CM-110SK:8 bit burst CM-550SK: NA |
| Time Delay: | 0 – 99 seconds |
| Alarm Time: | 0 – 3 minutes |
| Temp Range: | CM-110SK: -49°F/+140°F (-45°C/+60°C) CM-550SK: -49°F/+113°F (-45°C/+55°C) |
| Dimensions: | CM-110SK: 6"H x 1-3/4"W x 1"D (152mm x 45mm x 25mm) CM-550SK: 4-13/16"H x 3-1/8"W x 1-1/16"D (121.67mm x 79.5mm x 26.42mm) |
