Alarm.com LP1501 PoE Door Controller and Power Kit

ADC-AC-LP1501-PSE https://mysecurity.odoo.com/web/image/product.template/153692/image_1920?unique=1ca93ad

CAD$ 838.50 838.5 CAD CAD$ 838.50

CAD$ 559.00

Not Available For Sale

This combination does not exist.

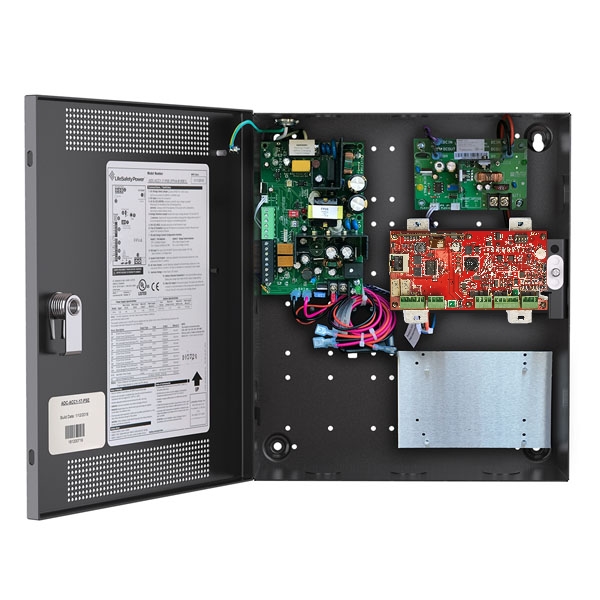

 Smarter Access Control is a powerful and easy-to-use solution for businesses ranging from small shops to large commercial properties. Designed for high-traffic business environments, the LP1501 PoE Door Controller & Power Kit comes with an LP1501 pre-wired to a 12/24 VDC dual-voltage power supply.

Installation is easy with this self-contained kit that can provide power for a complete 1 or 2 door access control system. Add additional readers, relay outputs, and I/O inputs to the system by mounting another LP1501 PoE Door Controller or Single Reader Expansion Module (both sold separately) on the included mounting plate.

Features

  • Two reader inputs
  • Two relay outputs
  • Pre-assembled for PoE powered systems
  • Support for eight expansion modules and up to 17 readers

Benefits

  • Scan-to-add card format and serial detection
  • Control doors and manage users from the Alarm.com app
  • User-friendly, flexible scheduling
  • Configure hardware using web or app for easy installation
  • Plug & play installation — no networking expertise required

Power supply specifications

Input Voltage120 / 208 / 230V AC 50/60 Hz
Main Outputs

1.5A @ 12V DC (B100)

1.5A @ 24V DC (FPV4)

Battery Charge Current0.7 or 1.60A Selectable
System BTU/Hour34 @ 12V, 41 @ 24V
Efficiency85% 120V AC 60 Hz In, Full Load
Certifications

UL294, UL603, UL1076

ULC S318, S319, CSA C22.2#107.1

CSA 22.2 #60950

RoHS Lead free

CE Approved

Operating Temperature-4 - 122°F (-20 - 50°C)

Door Controller specifications

Input PowerPoE, PoE+, or 12 VDC, 1.8 A max
Output Power

PoE: 12 VDC @625 mA, PoE+

12 VDC: 12 VDC @1.25 A

InputsOne dedicated reader input, one switchable reader/two-wire RS-485 input,
two programmable inputs, one dedicated tamper input
OutputsTwo relay outputs (2A @ 30V DC), single-wire LED control, single-wire buzzer output
Certifications

HSPD-12/FIPS201 compliant, CE compliant, UL 294 and UL 294B recognized, RoHS, FCC Part 15 Class A, NIST certified encryption

Dimensions (L x W x H)

Without bracket: 5.5 x 2.75 x 0.96” (140 x 70 x 24 mm),

With bracket: 5.5 x 3.63 x 1.33” (140 x 92 x 34 mm)

Temperature

32°F - 158°F (0 - 70°C) operational

-67°F - 185°F (-55 - 85°C) storage

Operating Humidity5-95% (non-condensing) RH

Kit specifications

Dimensions14 x 12 x 4.5" (35.6 x 30.5 x 11.4 cm)
Weight13 lbs. (5.9 kg)
Conduit Knockouts1/2" (15mm) and 1 1/4" (32mm)
