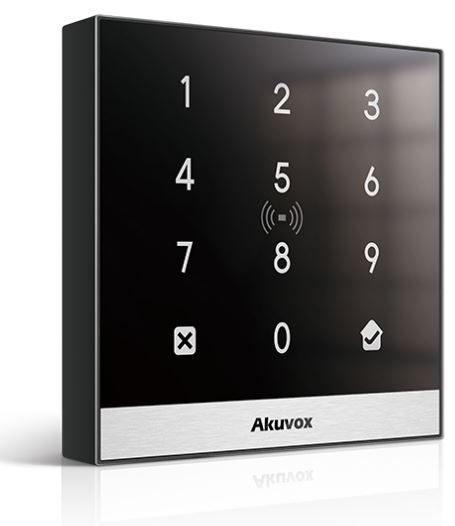

A02 IP-based Access Control Terminal
A02This product is no longer available.
A02
Smart, Compact, and Stylish Access Control Terminal
A02 is an IP-based access control terminal that combines door controller and card reader in one device. It supports PIN codes, RFID cards, and mobile access via NFC, offering users flexibility in credentials options.
 |  |  |
A02 Specification
· Physical & Power
Front panel: Touch Keypad
Frame: Aluminum Alloy
RFID card reader: 13.56MHz & 125kHz
Relay out: 1
Inputs: 2
Wiegand: Support
Speaker: 8Ω / 0.5W
Tamper proof alarm: Support
Ethernet port: RJ45, 10/100Mbps adaptive
802.3af Power-over-Ethernet
12V DC connector (if not using PoE)
Power output: 12V 600mA
IP Level: IP65
Installation: Flush-mounted or Wall-mounted
Dimension: 86 x 86 x 33 (mm)
Working Humidity: 10~90%，no condensing
Working Temperature: -20°C ~ +55°C
Storage Temperature: -30°C ~ +70°C
· Capacity
User Capacity: 20,000
Card Capacity: 20,000
Event Log: 100,000
· Deployment & Maintenance
Auto-Provisioning
Web management portal
Web-based packet dump
Configuration backup / restore
Firmware upgrade
System logs
· Networking
Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
· Door Entry Feature
Access schedule export/import
Access level management
Supports switch to reader mode
Door access logs query and export
Flexible scheduling and attendance management
