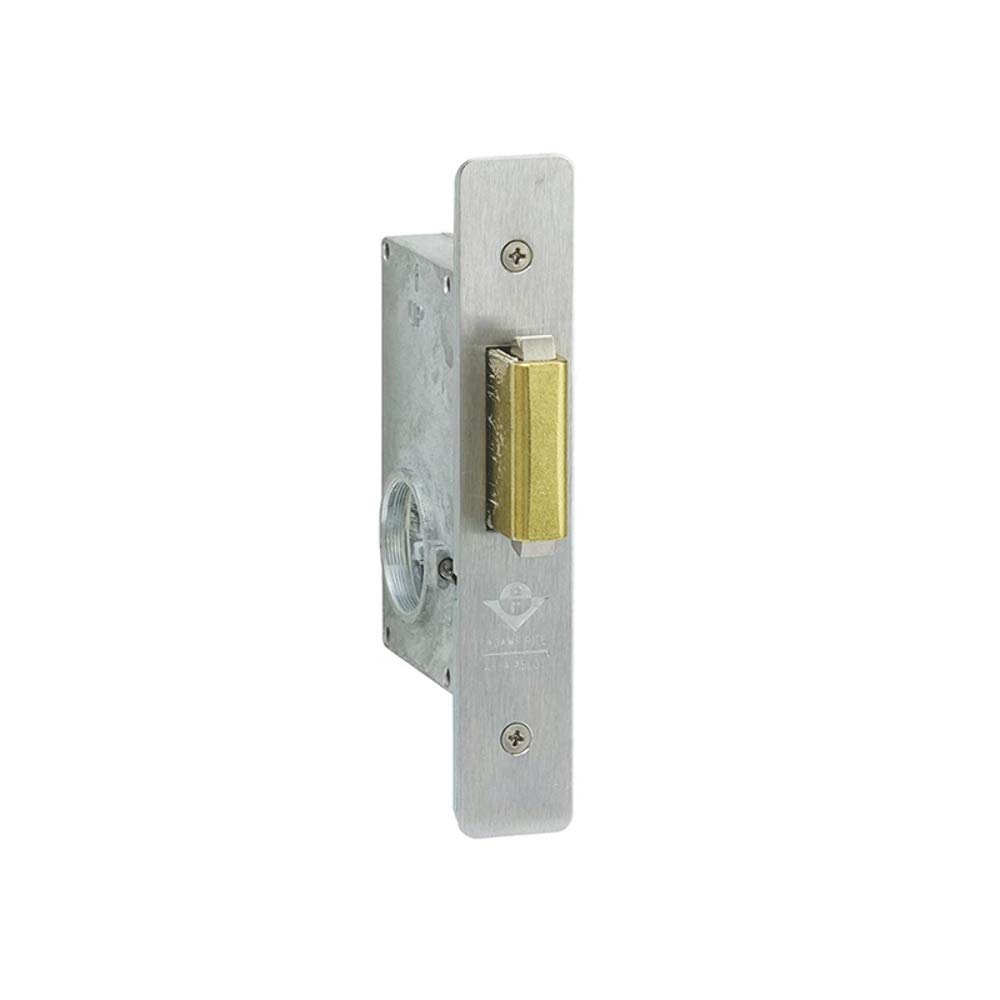

Adams Rite 2331-626 Sliding Door Mortise Deadlock And Strike

Adams Rite 2331-626 Sliding Door Mortise Deadlock And Strike

2331-626

CAD$ 486.80

CAD$ 211.65

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Function

A heavy duty deadbolt for hollow metal or wood sliding doors, the 2331 Heavy Duty Deadbolt throws a massive brass bolt into its strike, then expands two stainless steel dogs to secure the door. A single turn of the key expands or retracts the bolt. There is no latch action.

Operation

360° turn of key or thumbturn extends and projects or retracts and withdraws the bolt. Key cannot be removed unless bolt is positively locked or totally retracted. Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder or thumbturn with special cam dimensions. Lock accepts cylinder from either or both sides.

Features

Cylinder Backset: 1-3/4" [44.5 mm] only.

Case: Measures 7/8" x 3-5/8" x 2-5/8" deep [22.2 mm x 92.1 mm x 66.7 mm]. Zinc alloy.

Bolt: Brass with stainless steel dogs,1/2" x 1-1/2" [12.7 mm x 38.1 mm] with 3/4"[19.1 mm] horizontal throw and 11/32" [8.7mm] expansion above and below main bolt.

Strike: 1/8" x 1" x 4-11/16" [3.2 mm x 25.4 mm x 119.1 mm] with 5/8" x 1-5/8" [15.9 mm x 41.3 mm] opening. Brass, with four-screw mounting. Trim finish same as faceplate.

Armored Faceplate: Measures 1" x 5-3/4" [25.4 mm x 146.1 mm]; Flat faceplate of brass. Available in a variety of finishes.

Special Cylinder Cam: Operable by any standard mortise cylinder with special cam dimensions. Cylinders with such cams can be readily obtained from most cylinder manufacturers. See CYLINDERS & ACCESSORIES section for cylinder make, thumbturn and trim ring information.

Standard Package: Individually boxed with strike and wood screws for mounting lock and strike. Cylinder and/or thumbturn available separately.

Available in choice of US3 Polished Brass (605), US26 Bright Chrome (625), US26D Satin Chrome (626), 121to match 313 Dark bronze anodized.
