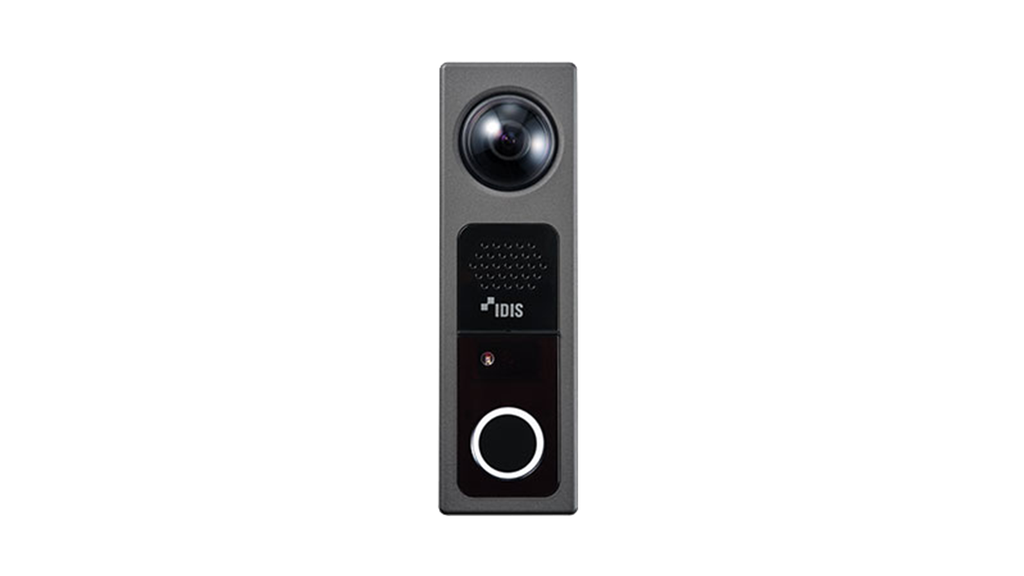

IDIS DC-I6212WRX 2MP Access Control and Video Intercom
DC-I6212WRX https://mysecurity.odoo.com/shop/idis-dc-i6212wrx-2mp-intercom-161716 https://mysecurity.odoo.com/web/image/product.template/161716/image_1920?unique=fd2a4fbProduct Overview
The IDIS DC-I6212WRX is the first-ever NEMA 4X, IK10, and IP66 rated vandal-resistant and waterproof 2MP video intercom combining superior surveillance, seamless communication, and access control in a single affordable unit. It adds a valuable access product to IDIS's comprehensive NDAA-compliant product range.
Crucial to safety and security at premises' entrances, the DC-I6212WRX is managed from front desk receptions to support access management, improved visitor management, and face-to-face interaction. It provides essential video and audio evidence in the event of an incident.
Featuring easy plug-and-play installation, the intercom supports seamless communication, video monitoring, and access control. Compatible with free tools like IDIS Center, mobile apps, and enterprise-grade VMS for versatile operation. NDAA and TAA compliant.
- Minimalist Aesthetics, Sleek Lines, and Functionality Focused On Users — a discreet, professional form factor designed for modern entrances.
- Connect and Respond Cost-Free with The IDIS Mobile+ App — answer and manage visitors from anywhere using the free IDIS mobile application.
- Safeguard Against Hazards, Vandalism, and Extreme Indoor and Outdoor Conditions — rated IP66, NEMA 4X, and IK10 for total protection in the toughest environments.
Key Features
- ✓ 2MP 1/2.8" CMOS Sensor - 1920 x 1080 Full HD at 30fps
- ✓ 180° Fisheye Lens - complete entry-point coverage in one unit
- ✓ 120dB True WDR - clear imaging in high-contrast lighting
- ✓ Two-Way Audio with Echo Cancellation - built-in mic and speaker
- ✓ SIP (VoIP) Protocol Support - integrates with access control and VoIP systems
- ✓ IDIS Mobile+ App - free mobile response and communication
- ✓ IP66, NEMA 4X and IK10 Rated - weatherproof and vandal-resistant
- ✓ PoE IEEE 802.3af - single-cable power and data
- ✓ Edge Storage up to 512GB - micro SD with Smart Failover
- ✓ Alarm I/O: 1 in / 2 out - door release and alarm integration
- ✓ ONVIF Profile S/T + DirectIP 2.0 - broad VMS and NVR compatibility
- ✓ NDAA and TAA Compliant - approved for government and federal projects
Specifications
| VIDEO | |
|---|---|
| Image Sensor | 1/2.8" CMOS, Progressive Scan |
| Resolution | 1920 x 1080 (2MP) |
| Lens | 1.85mm Fixed Fisheye, F2.3, Fixed Iris |
| Field of View | 180° Horizontal |
| Minimum Illumination | 0.1 lux (color) / 0 lux (IR on) |
| IR Range | 5m / 16ft (1 IR LED) |
| Dynamic Range | 120dB True WDR |
| Electronic Shutter | Auto / Manual (1/30 to 1/10,000), Anti-Flicker, Slow Shutter |
| Day / Night | Yes (ICR) |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| NETWORK | |
| Video Compression | H.265 / H.264 / M-JPEG, Intelligent Codec |
| Max Frame Rate | 30fps @ 1920 x 1080 |
| Supported Resolutions | 1920x1080, 1280x720, 640x360, 352x240 |
| Streaming | Quadruple Streaming |
| Audio Compression | G.726, G.711 u-Law, G.711 a-Law, G.722 |
| Two-Way Audio | Yes, built-in mic with echo cancellation + built-in speaker |
| Network Protocols | DirectIP 2.0, IPv4/IPv6, RTP/RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, SIP, mDNS, uPnP, SNMPv2 |
| Camera Protocols | DirectIP 2.0, ONVIF Profile S/T |
| Security | Digest Authentication, SSL/HTTPS Encryption, IP Filtering, IEEE 802.1x (EAP-TLS), Password Protection |
| Edge Storage | micro SD/SDHC/SDXC up to 512GB, Smart Failover |
| ALARM & AUDIO | |
| Alarm Input / Output | 1 in / 2 out |
| Trigger Events | Motion Detection, Alarm In, Audio Detection, Tampering, Trip Zone |
| Event Notification | Remote Software, Email with Image |
| ENVIRONMENTAL & MECHANICAL | |
| Ingress Protection | IP66, NEMA 4X |
| Impact Resistance | IK10 |
| Power | 12VDC (1.87A, 22.4W) or PoE IEEE 802.3af Class 3 (9.5W) |
| Operating Temperature | -30°C to +55°C |
| Operating Humidity | 0% to 90% RH |
| Dimensions | 52 x 165 x 46mm (2.05" x 6.50" x 1.81") |
| Weight | 0.52kg (1.15lb) |
| Compliance | FCC, CE, KC, NDAA Section 889, TAA Compliant |
Resources & Downloads
