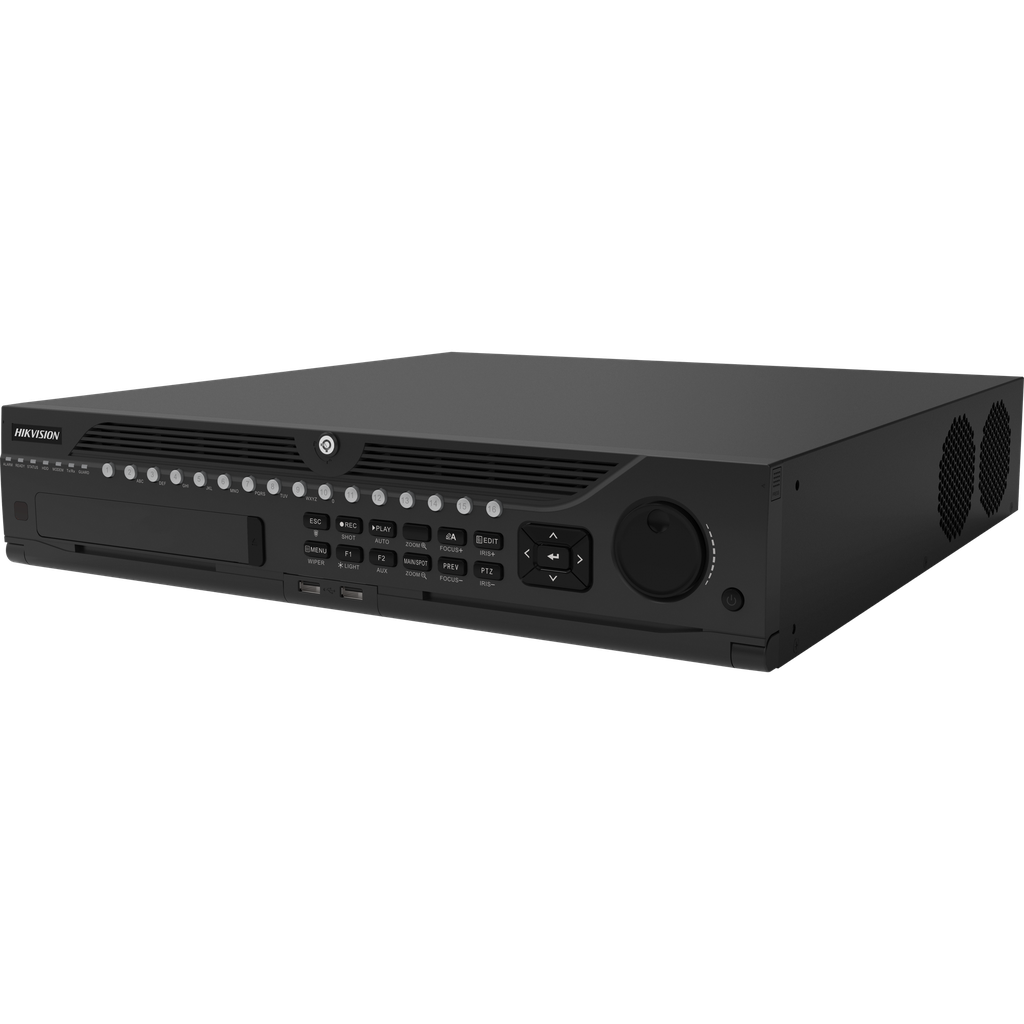

64-ch 2U 4K NVR

• Up to 64 channel IP cameras can be connected
• Up to 12 MP high-definition live view, storage and playback
• Up to 320 Mbps (or 200 Mbps when RAID is enabled) high incoming bandwidth ensures IP cameras can be connected
• 2 HDMI (different source) and 2 VGA (different source) interfaces
• 8 HDD can be used for continuous video recording
• Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera
• Advanced streaming technology enables smooth live view in poor network conditions
• Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks

Video and Audio

IP Video Input:  64-ch, Up to 12 MP resolution,  *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.

Incoming Bandwidth:  320 Mbps

Outgoing Bandwidth: 256 Mbps

Incoming Bandwidth (RAID Mode): 200 Mbps

Outgoing Bandwidth (RAID mode): 200 Mbps

HDMI 1 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

HDMI 2 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA 1 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA 2 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Video Output Mode: HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;

​ ​ ​ ​        HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output

CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Audio Output: 2-ch, RCA (Linear, 1 KΩ)

Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

Decoding Format: H.265+/H.265/H.264+/H.264/MPEG4

Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

​ ​ ​ ​        *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.

Synchronous playback: 16-ch

Decoding Capability: 1-ch@32 MP (30 fps)/2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)/16-ch@1080p (30fps)

Dual-Stream Recording: Support

Stream Type: Video, Video & Audio

Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

Network

Remote Connection: 128

Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

RAID

RAID Type: RAID0, RAID1, RAID5, RAID6, and RAID10 (at least 4 TB for each HDD)

Auxiliary Interface

Serial Interface: 1 RS-485 (full-duplex), 1 RS-232, 1 keyboard

SATA: 8 SATA interfaces supporting hot-plug

eSATA: 1 eSATA interface

Capacity: Up to 10TB capacity for each disk

Alarm In/Out: 16/4

USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

General

Power Supply: 100 to 240 VAC, 50 to 60 Hz

Consumption: ≤ 30 W

Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)

Working Humidity: 10% to 90%

Chassis: 3U chassis

Dimension (W × D × H): 445 × 465 × 92 mm ( 17.5"× 18.3" × 3.6")

Weight: ≤ 10 kg (22 lb)

Certification

FCC: Part 15 Subpart B, ANSI C63.4-2014

CE: EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
