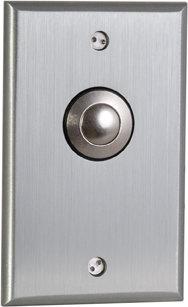

Camden 7/8" Vandal Resistant Push/Exit Switch

Camden Door Controls

CM-9080

CM-9000 and CM-9100 series push/exit buttons are all-metal construction and will withstand extreme attacks of all types. The buttons are countersunk in a heavy duty 1/4" thick brushed aluminum faceplate and available in single gang (2-3/4") or narrow stile (1-3/4") widths. Available with optional US40 (duranodic) finish.

CAD$ 99.97 99.97 CAD CAD$ 99.97

CAD$ 62.48

    This combination does not exist.

    • Steel button will withstand extreme attacks of all types
    • Button is countersunk in heavy 1/4" thick aluminum plate
    • Indoor or outdoor applications
    • Color coded 18 AWG leads, with spade connectors
    • Lifetime Warranty

    Voltage:

    12/24 VDC

    Contact Type:

    CM-9080/9180: DPDT Momentary
    CM-9090/9190: DPDT Maintained

    Contact Rating:

    6 A @ 30 VDC

    Dimensions:

    CM-9000 Series:
    4-1/2" x 2-3/4" x 1-1/8"
    (114mm x 70mm x 28mm)
    CM-9100 Series:
    4-1/2" x 1-3/4" x 1-1/8"
    (114mm x 44mm x 28mm)

    Std. Finish:

    Brushed Aluminum

    Spec Sheets

    CM-9000-9100_Spec Sheet_R5

    pdf

    0.63


    Reference Guides

    Push Button Switch Cross Reference

    pdf

    0.15


    Manuals

    CM-9000 Series_Manual R2

    pdf

    0.15
