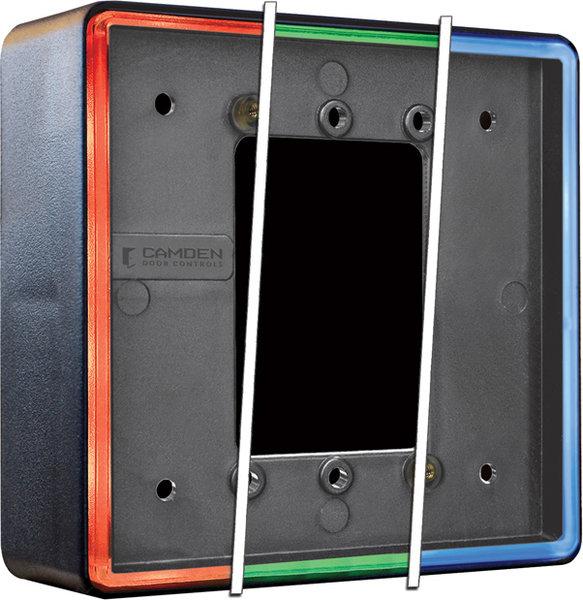

Camden CM-54i Flush Mount Illuminated Push Plate Enclosures

Camden Door Controls

CM-54-I

CM-55 (flush square) illuminated push plate enclosures and switch kits provide high visibility and enhanced user convenience in ADA compliant automatic door and other applications.

CAD$ 107.10 107.10000000000001 CAD CAD$ 107.10

CAD$ 66.94

    This combination does not exist.

    • Illuminated surface and flush mount box compatible with any CM-40, CM-45 or CM-46 'All Active' push plate switch
    • Red/Green and Red/Green/Blue models available
    • High efficiency LED technology
    • Improves switch visibilty, even in daylight
    • Flame and impact resistant polycarbonate construction
    • Selectable 12/24V AC/DC
    Voltage: 12 or 24V AC/DC
    Current Draw: CM-54i/CM-55i: 130 mA.
    CM-54GR: 110 mA.
    Lumina: Blue: 1500 MCD,
    Red: 5760 MCD, Green: 3780 MCD
    Contact Type: CM-54i/CM055i/CM-57GR: 1 SPDT Form 'C'
    Contact Rating: 3 A @ 30 VDC
    Sounder: 85 DB
    Dimensions: CM-54: 5-1/4" x 5-1/4" x 2-1/8"
    (133mm x 133mm x 54mm)
    CM-55: 6-1/2" x 6-1/2" x 2"
    (165mm x 165mm x 51mm)
    CM-57: 6-5/8" Dia. x 2"
    (168mm x 51mm)
    Spec Sheets
    CM-54i-55i & 57GR_Spec Sheet_R5pdf0.70
    Manuals
    CM-54i-Manual_R3pdf0.35
    CM-55i_Manual_R3pdf0.35
    CM-55i_Templatepdf0.10
    CM-57GR_Manual_R1pdf0.53
    CM-57GR_Templatepdf0.10
    Reference Guides
    Guide To OBC Compliant Push Plate Switches_R2pdf0.90
    Guide To OBC Compliant Push Plate Switches_French_R2pdf0.90
