Camden CM-120W-V2 Keypad 999 User Weather Resistant 12/24V

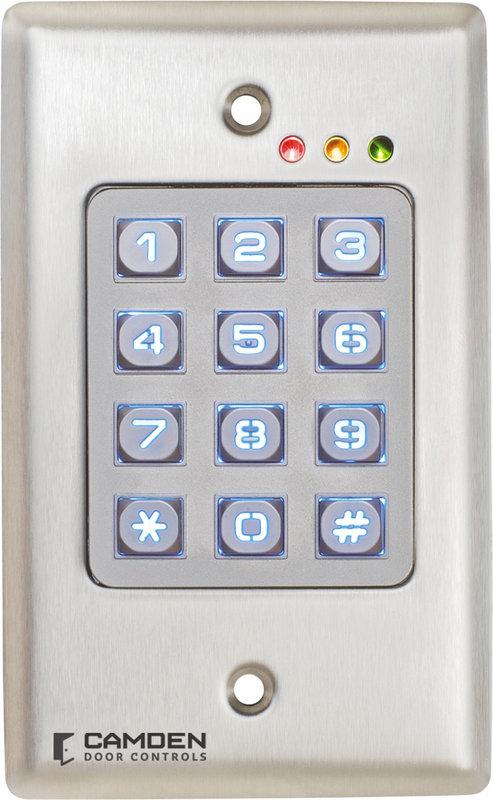

CM-120W-V2CM-120 Series keypads are North American built and provide Tri-Brid™ stand alone, Wiegand and optional wireless operation! CM120i offers the best performance and value for indoor applications. CM-120wV2 is a vandal and weather resistant model with a metal back-lit keypad.
CM-120wV2 | |
Voltage: | 12/24V AC/DC |
Mounting: | Single gang, flush (2) #6 machine and tamper proof screws |
Current Draw: | 30 mA Standby, 90 mA Max |
Input: | 1 x Rex Input / 1 x Door Contact Input |
Contact Type: | 2 x Form 'C' |
Contact Rating: | 3 AMPS @ 24 VDC |
Capacity: | 999 User Codes |
Length: | Variable, Up to 8 Digits (10 Million Possible Codes) |
Response Time: | 0.3 Seconds |
Time Delay: | 1 to 255 Seconds, or Latched |
Temp Range: | -40°F to + 122°F (-40°C to +50°C) |
Dimensions: | 4-1/2" x 2-3/4" x 3/4" (114mm x 70mm x 19mm) |
RF Output: | Optional Plug-In Transmitter, 2 Channel |
