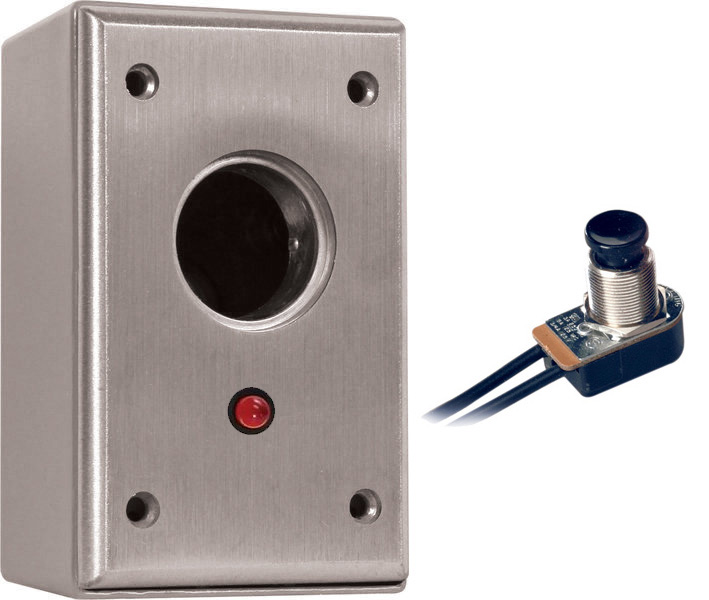

Camden CM-1010-7012 Cast Aluminum with Surface Box Surface Mount Key Switch, SPST Maintained Red 12V LED mounted on faceplate

Camden Door Controls

CM-1010-7012

Camden vandal resistant key switches feature a 1/4" thick faceplate, with one-piece faceplate and switch bracket design. 1 or 2 contact switches can be mounted.

CAD$ 112.10 112.10000000000001 CAD CAD$ 112.10

CAD$ 70.06

    This combination does not exist.

    • Supplied with heavy duty diecast surface box
    • Accepts standard mortise cylinders (1" - 1-1/4")
    • Heavy duty 1/4" thick aluminum plate
    • Cylinder sits flush to faceplate
    • Tamper proof screws and driver provided
    • No set screws required
    • Color coded 18 AWG soldered leads
    • Heat shrink protective sleeve over contacts
    • Complete range of 1 and 2 switch SPST, SPDT and DPDT models, momentary and maintained
    • 3 year warranty
    Voltage: 12/24V AC/DC
    Contact Rating: 6 A @ 30 VDC
    Switch Life: 100,000 cycles
    Temp Range: 32°F to 85°F (0°C to +85°C)
    Std. Finish: Brushed aluminum
    Dimensions: 4-1/2" x 2-3/4" x 2"
    (114mm x 70mm x 51mm)
    Spec Sheets
    CM-1000_Spec Sheet_R4pdf0.55
    Reference Guides
    Key Switch_Cross Referencepdf0.15
    Manuals
    CM-1000_Manual_R3pdf0.56
    CM-1000_Manual_R3_FRpdf0.51
