6300 Series

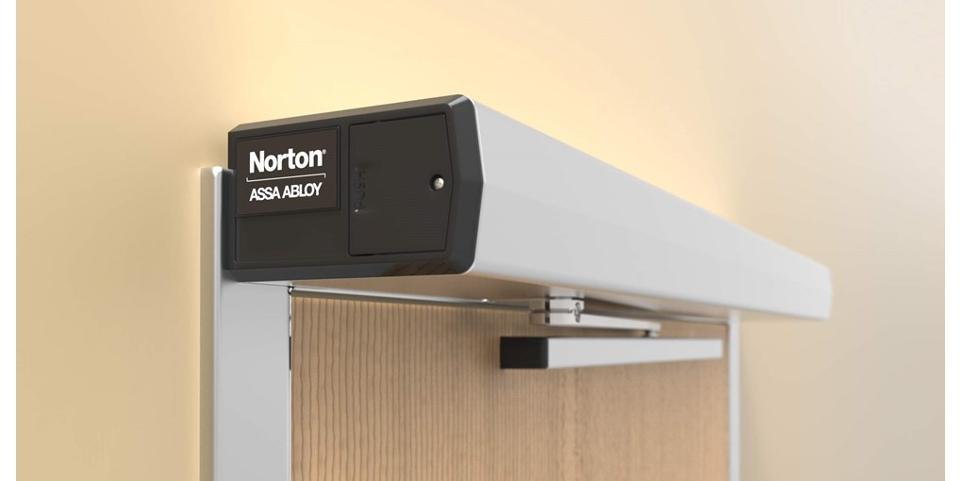

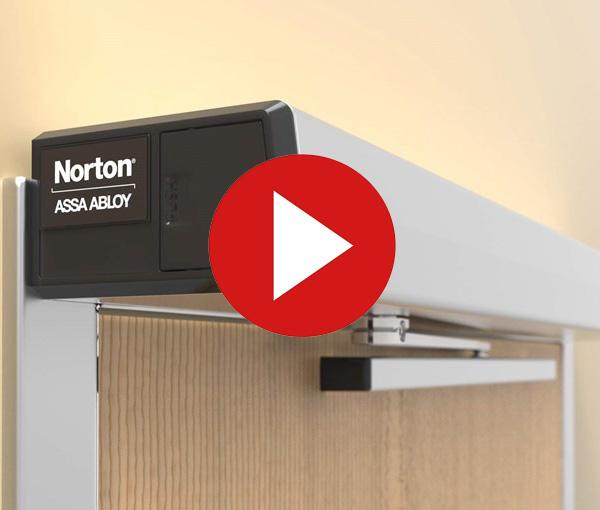

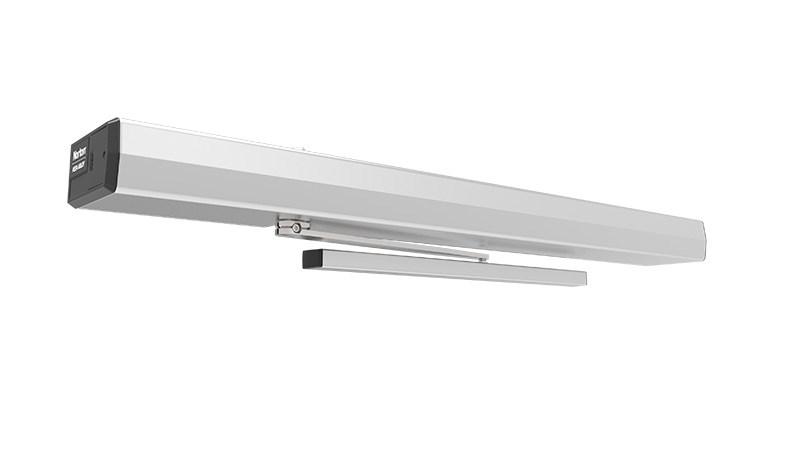

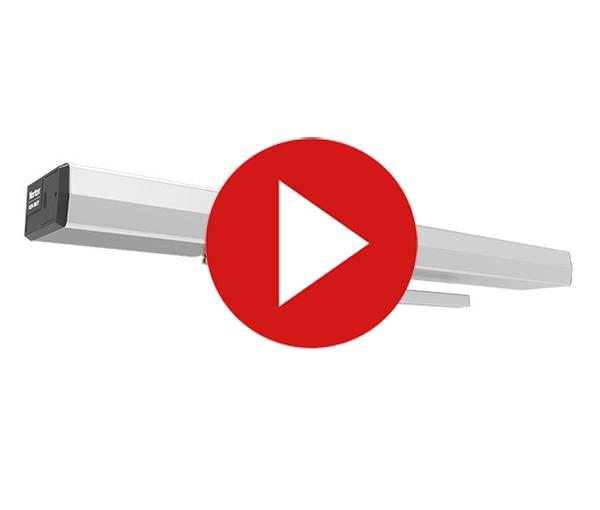

The Norton 6300 Series Low Energy Operator offers a broad set of intelligent functions, such as power close, latch assist and obstruction detection to safely secure a variety of moderate to high traffic openings. A unique design with one of the slimmest profiles available allows the 6300 to blend more seamlessly with the frame while fitting challenging applications with minimal header space. A modular design, simple controls, and new wifi interface via a mobile device make for easy installation and setup.
Door Control (interior) (exterior) closing force shall be adjustable to ensure adequate closing control. Door Operator shall simulate conventional door closer opening and closing forces unless the power operator motor is activated. Door Operator shall have electronic backcheck to cushion the door speed if door is opened violently. [(Door Operator shall be AUTOMATICALLY ACTIVATED by either a slight push or pull in the direction of opening swing - Push and Go.) (Door Operator shall be SELECTIVELY ACTIVATED by external initiating device, i.e. wall switch, etc.) (Door Operator shall be both AUTOMATICALLY ACTIVATED and SELECTIVELY ACTIVATED.)] Operator shall have selectable power close to provide additional closing force to overcome conditions that may prevent door from latching. Unit shall have delay switches for motor activation, electric lock interfacing, and hold open time. Units shall interface with latch assist exit devices or similar products and have 24VDC @ 1.3A maximum (less accessories) output for connection of electric strike, lock, radio frequency receiver, etc. Unit shall have a three-position Selector Mode Switch that will permit the unit to be switched "ON" to monitor for function inputs, switch to "H/O" for infinite hold open function or switched "OFF" which will disable function inputs allowing unit to be used as a manual door closer. Unit shall be U.L. Listed for automatic closing door. The Unit shall be adjustable to provide compliance with the requirements of the Americans with Disabilities Act (ADA). Unit shall be certified by BHMA to meet A156.19 requirements. Unit shall meet UL325/991, UL10C standards.
|
|
 689 Aluminum |
 690 Statuary Bronze |
 WSP White Suede Powder Coat |
- Push and pull side mounting
- Non-handed
- Activated by push button, hands-free and RF devices
- Door Width (single or pair): min 36", max 48"
- Door Weight: 250 lbs.
- Aesthetically pleasing, slim profile
- Modular Design
- LCD Screen
- Wifi Interface
- Push & Go (selectable)
- Obstruction detection (open and close)
- Modular design
- Latch assist feature for enhanced security
- Power Close
- Selectable mode switch (off, on, hold open)
- Adjustable opening force
- Adjustable closing power
- Blow open and blow close for smoke ventilation
- 2 year limited warranty
- Latch assist ensures door closes to secure facility
- Occupant safety enhanced by obstruction detection, power assist, and push & go functions
- Customizable inputs and outputs for accessories, including security override and fire safety
- Unique design with slim profile blends seamlessly with frame
- Low profile easily fits applications with minimal header space
- Modular design allows for one-person installation
- Heavy-duty back plate serves as template simplifying and speeding installation
- Unit learns door properties (approximate weight) during installation for easy programming and set-up
- Easy to use controls simplify setup

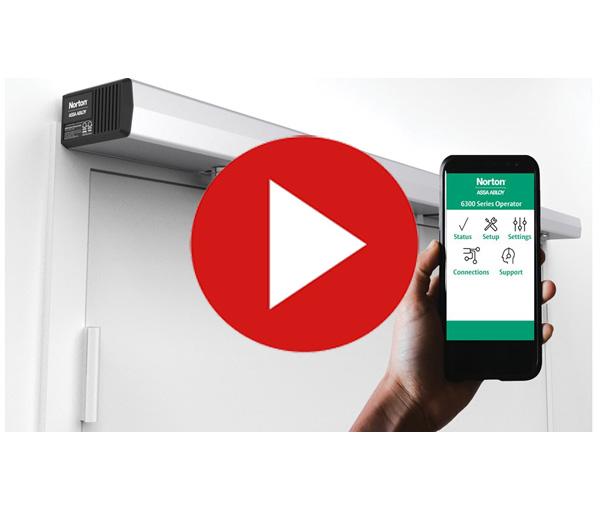

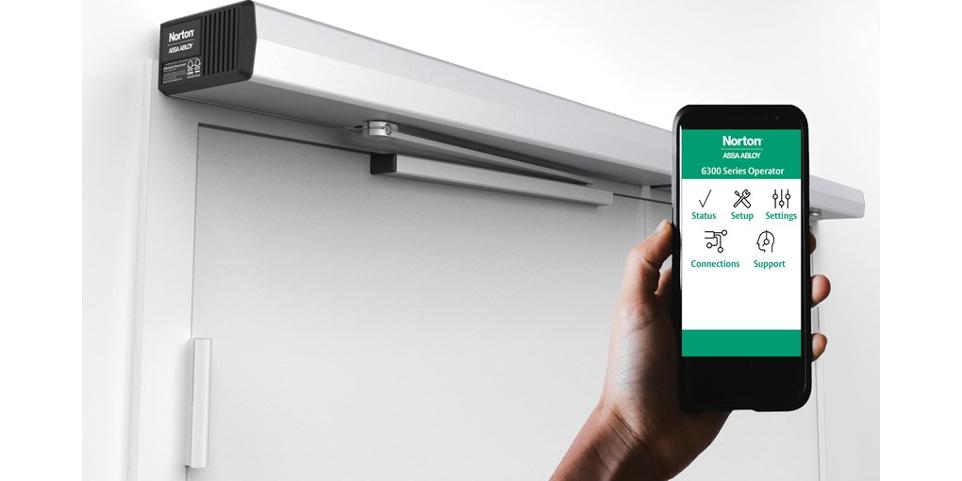

- Easy setup via a mobile device
- USB port allows for quick software updates
SMART
GOOD LOOKING
SIMPLE
- Power input 120 VAC, 3A, 60Hz
- Current draw 1.5A
- Power output 24VDC @ 1.3A max draw (less accessories)
- ANSI/BHMA A156.19 certified
- UL325/991 certified
- UL10C listed for positive pressure fire test
- Complies with requirements for the Americans with Disabilities Act (A.D.A)
- Manufactured in an ISO 9001 and ISO 14001 certified facility
7100SZ Documents
6300 Series Operator
| Title | Document # | Published |
| 6311 Pull Side, 6351 Pull Side Double Egress | 80-9363-0005-020 | Aug 2021 |
| 6331 Push Side | 80-9363-0007-020 | Aug 2021 |
| 6312 Pull Side, 6352 Pull Side Double Egress | 80-9363-0008-020 | Aug 2021 |
| 6332 Push Side | 80-9363-0009-020 | Aug 2021 |
| 6312, 6352 Pull Side (French) | 80-9363-0010-020 | Aug 2021 |
| 6332 Push Side (French) | 80-9363-0011-020 | Aug 2021 |
| 6300 Quick Start Guide | 80-9363-0014-020 | Nov 2019 |
| 6300 Programming Guide | 80-9363-0015-020 | Aug 2021 |
| 6311, 6351 Pull Side (French) | 80-9363-0016-020 | Aug 2021 |
| 6331 Push Side (French) | 80-9363-0017-020 | Aug 2021 |
| 6300 Programming Guide (French) | 80-9363-0018-020 | Aug 2021 |
| 6300 Quick Start Guide (French) | 80-9363-0019-020 | Aug 2021 |
