Camden 2 Door Bluetooth Access Control System


CV-603 Series is an app-based wireless Bluetooth® managed access control system designed to provide maximum flexibility in small door and gate applications and comes ready to support each system user with the card security FOB, or smartphone credential they want. The intuitive programming app is Apple® and Android® Protocol, with easy to use system set-up, user administration, downloadable audit trail and data back-up. Now featuring optional Virtual Remote License Keys to support smartphone credentials.
The CV-603 controller provides control for two doors including inputs for readers, door position switch and REX device and (2) outputs for electrified locking or alarm signal devices. A built-in 433Mhz. receiver supports two button wireless key fobs, providing an ideal solution for parking garage and gate control applications.

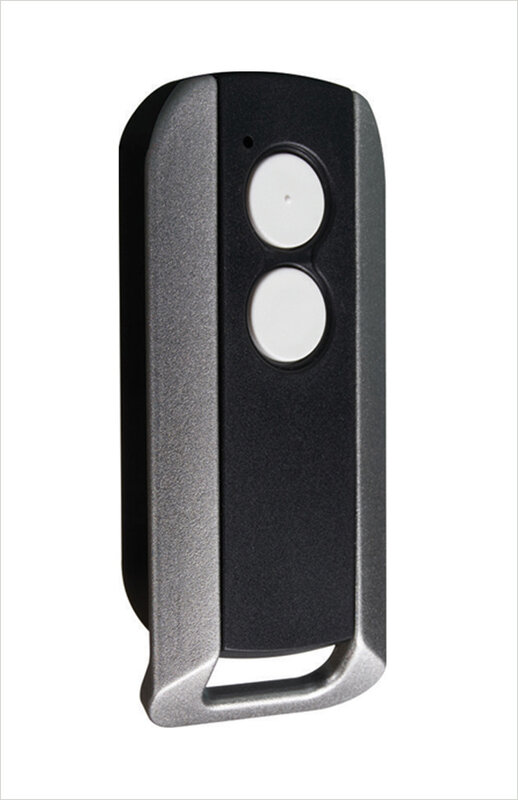

The transmitters CX-TRM-2 ( 2 channels) transmit the rolling security code at 433.92 MHz. They are powered by one 3V lithium battery (CR2032).The transmitter uses an AES128 encryption technology to protect the transmission. The device is designed to inhibit code grabbers from cloning the unique ID code.
