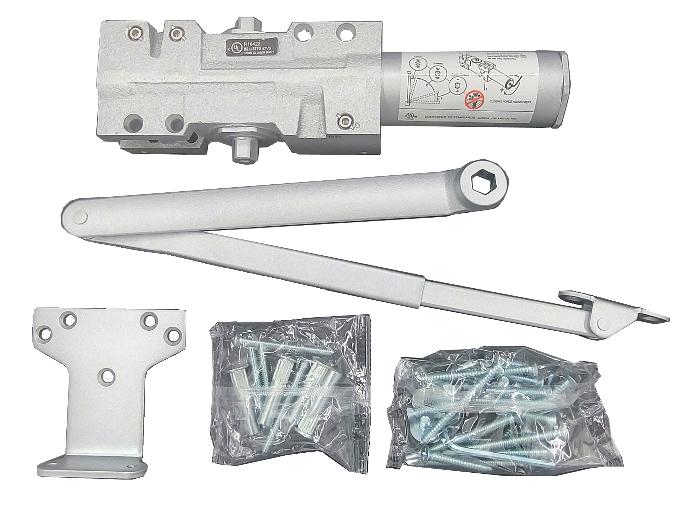

Dorex 441BCAL Door Closer Adj 1-6, W/Backcheck, Barrier Free

• For demanding, very high traffic applications
• Certified ANSI/BHMA A156.4 Grade 1
• cULus listed
• Meets ADA requirements
• 10 Year limited warranty

• Adjustable power size 1–6 (preset 3)
• Adjustable for barrier free operation
• Non-handed
• Heavy-duty, precision cast iron body
• Hydraulic rack & pinion mechanism
• Non-gumming, non-freezing hydraulic fluid
• 120° maximum opening
• 180° maximum opening with parallel arm
• Adjustable sweep and latching speeds
• Adjustable cushioning backcheck
• Adjustable delayed action
• Full body plastic cover included
• Tri-pack: regular, top jamb or parallel arm mount
• Various door closer arms available
• Drop plates available

Product Page

441HD – 03.005

Instructions

441HD – Installation Instructions
ARM441HDC – Installation Instructions
DP441HD-18PA – Installation Instructions
ARM441HDE – Installation Instructions

Disclaimer

• We recommend that physical hardware be ordered and verified before starting any preparation, manufacturing or installation work.
• All product installations must be done by qualified personnel using the proper mounting hardware for the appropriate surface or material.
• We recommend that installers and manufacturers use the instructions inside the packaging provided by the manufacturer, as the manufacturer reserves the right to make technical changes, modify product or information without prior notice.
• Do not exceed the maximum weight or dimensions recommended by the manufacturer.
• All technical documents, drawings and instructions are provided as-is. Customers (primary or secondary) cannot derive any claim based on the use of these documents. No responsibility is or will be assumed.
